LET THE LS252 DO ALL THE HARD WORK FOR YOU WHILST TACKLING ANY TIMBER TASK. SAVE YOUR BACK AND TIME WITH THIS RELIABLE UNIT.
DETAILS

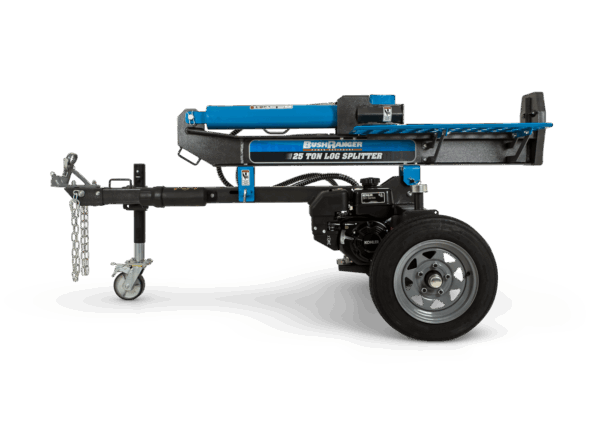

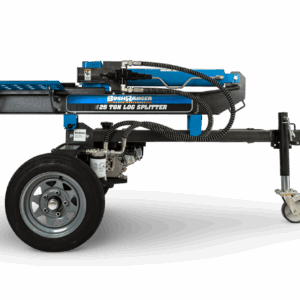

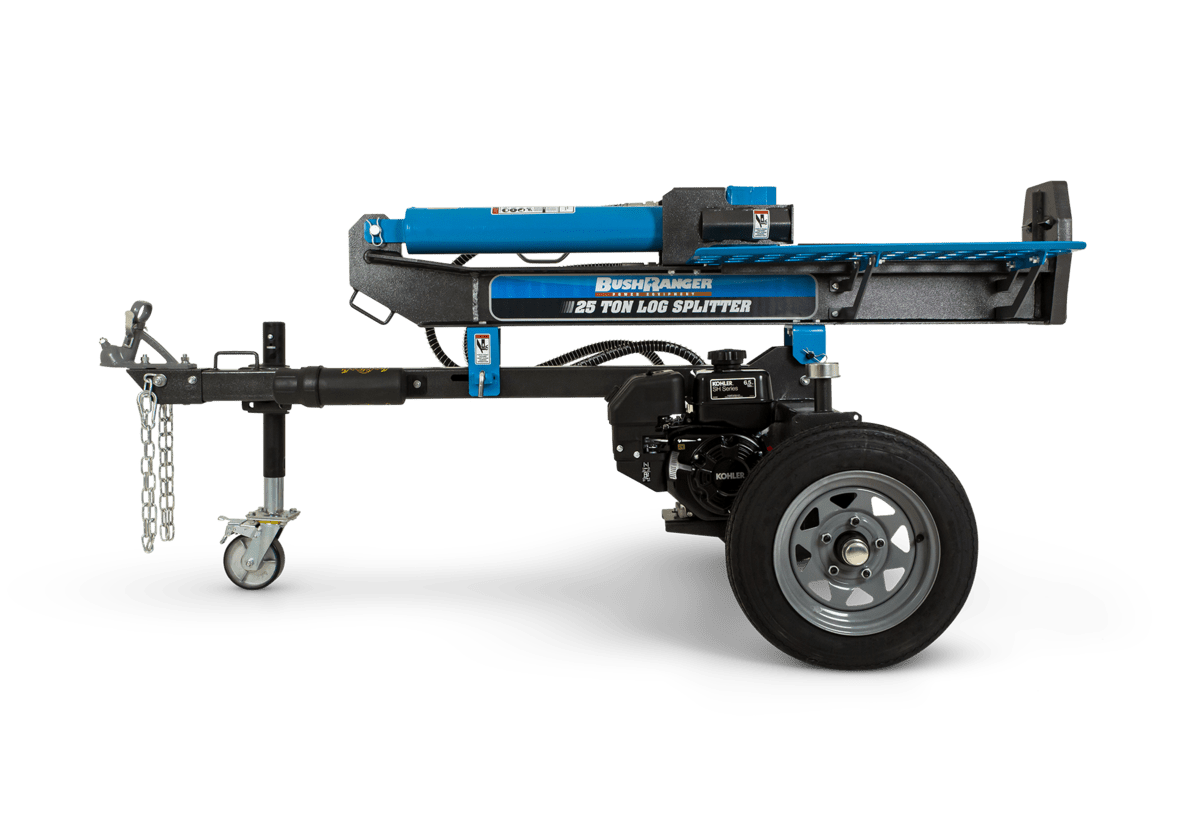

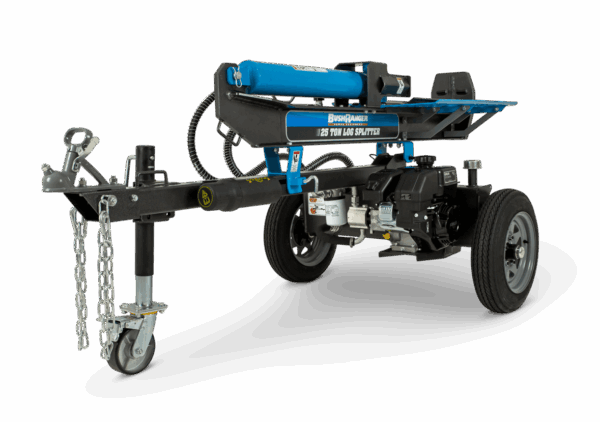

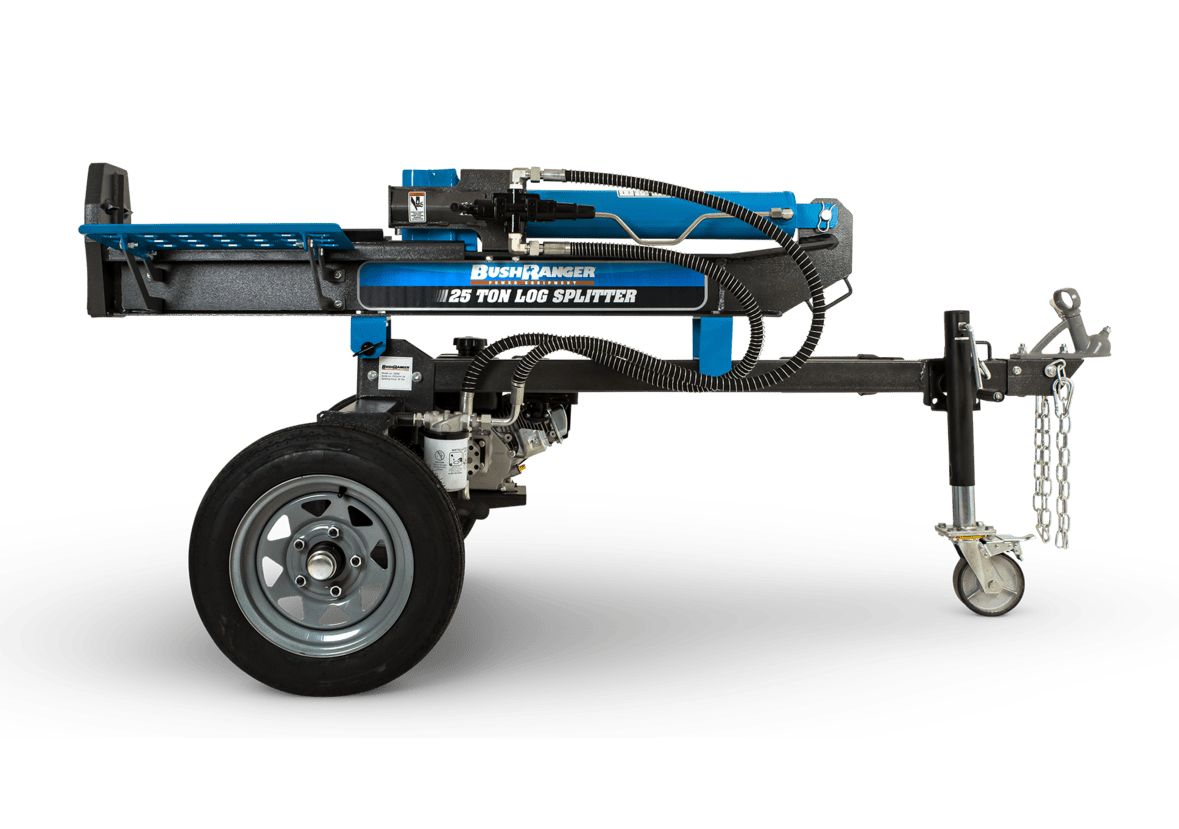

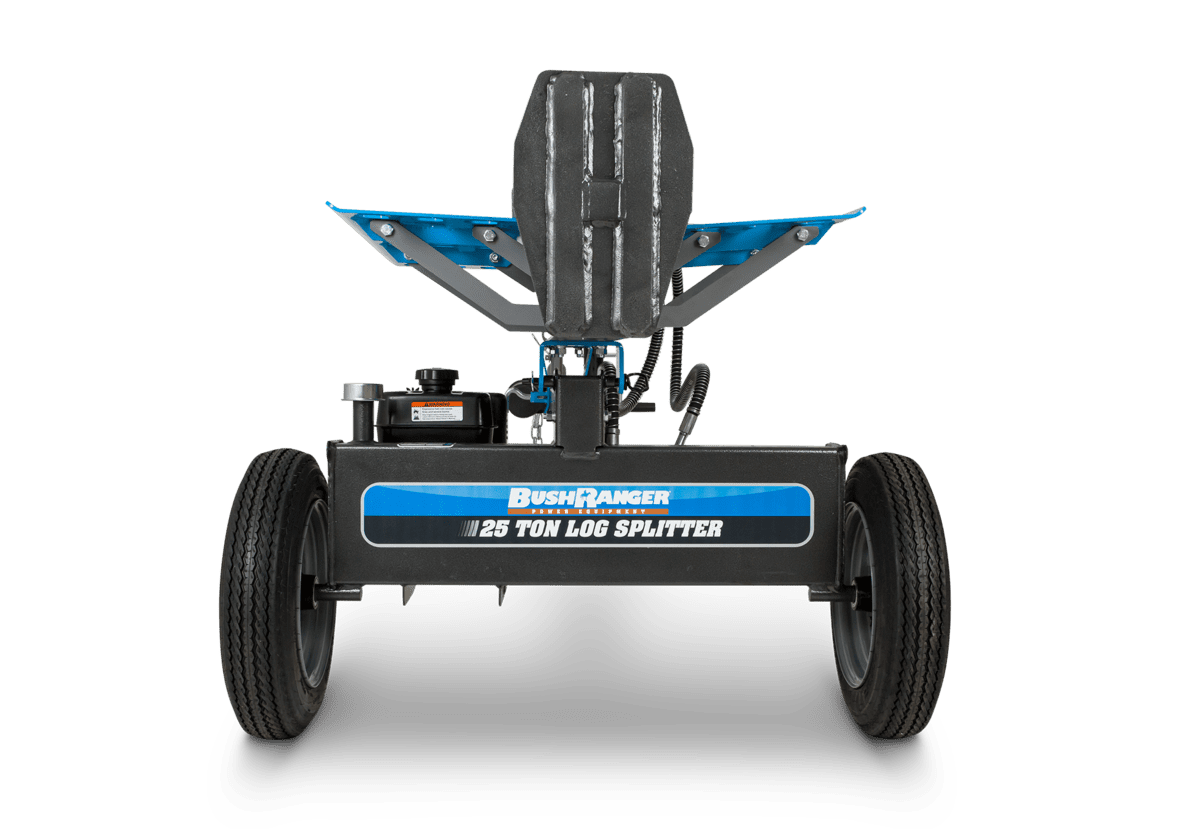

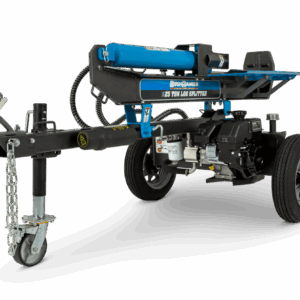

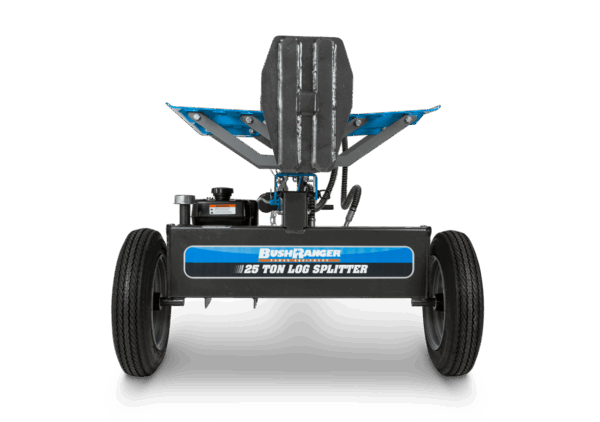

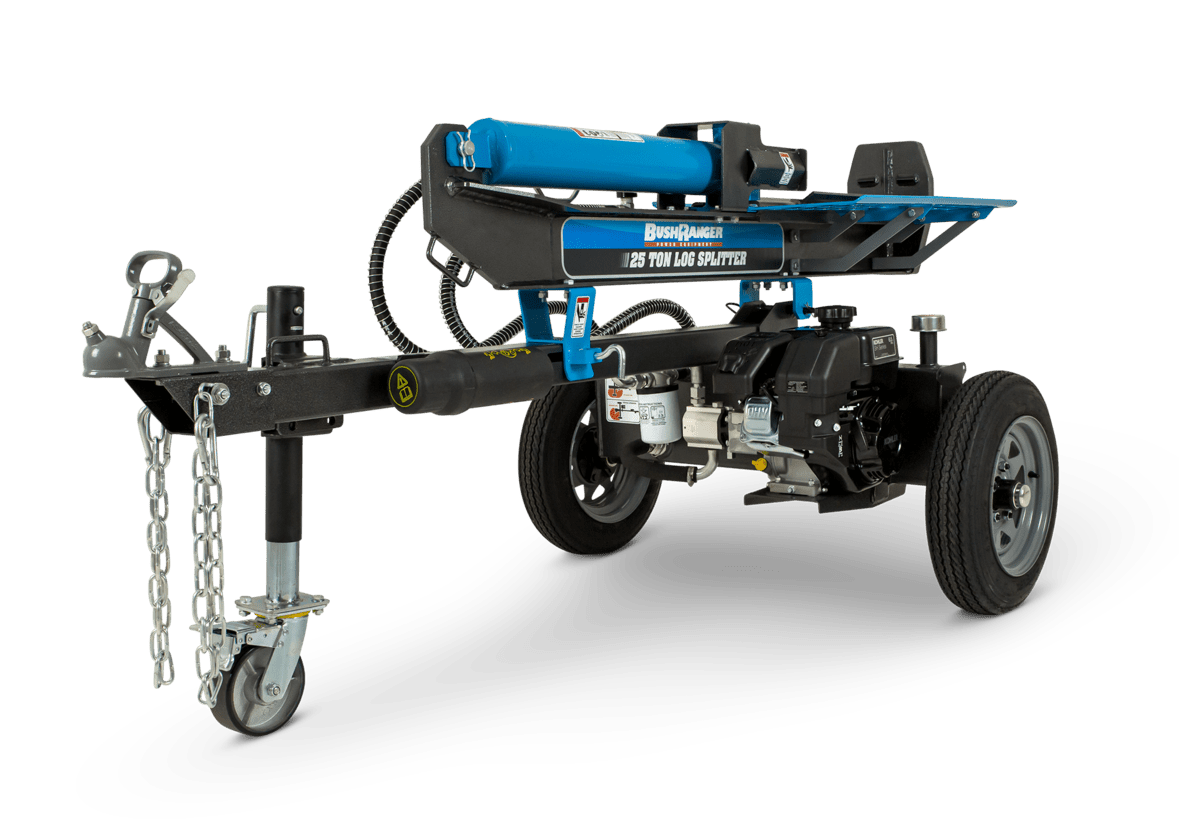

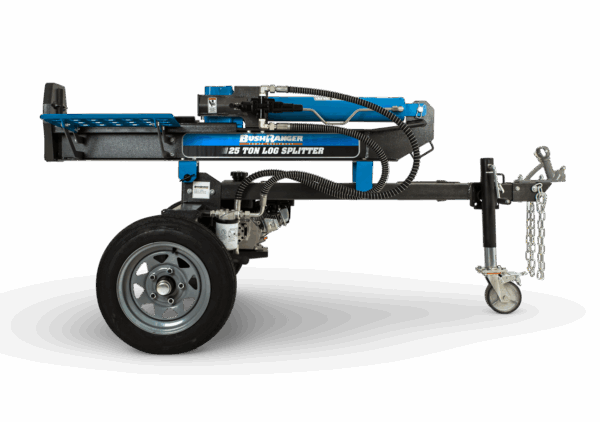

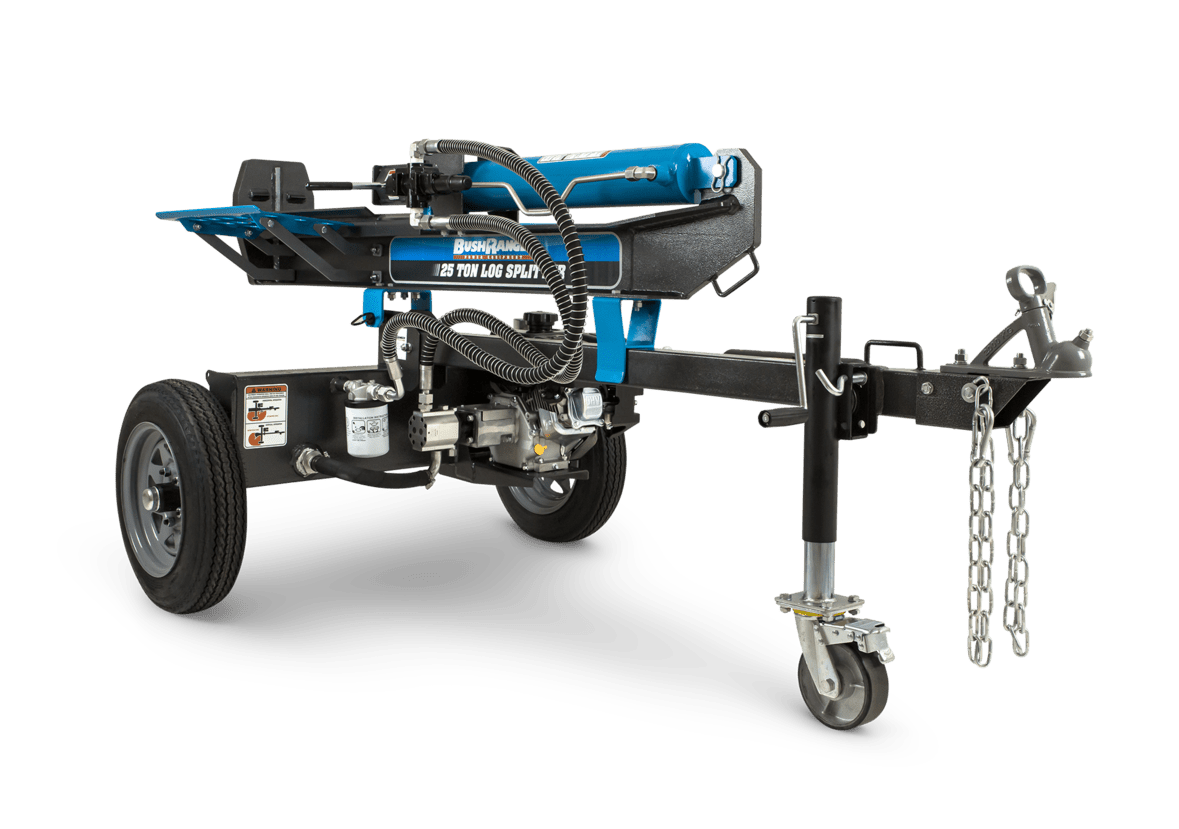

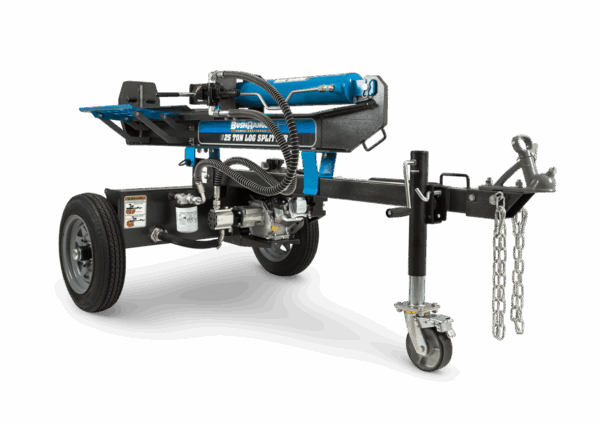

The Bushranger 25-Ton log splitter provides quality and power at an affordable price. Fitted with a KOHLER SH265, 6.5 hp (196 cc) engine, a manually activated auto return valve with an 10.9 second cycle time and quality features throughout this log splitter will provide many years of reliable service.
FEATURES
- Quality Engine – KOHLER SH265, 6.5 hp (196 cc) single cylinder, horizontal shaft OHV engine.

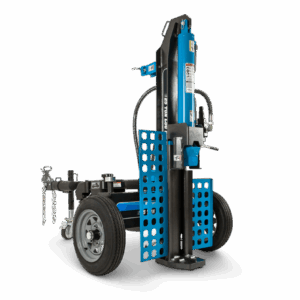

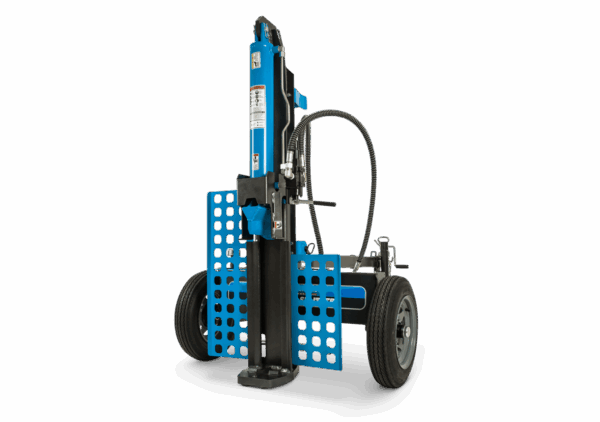

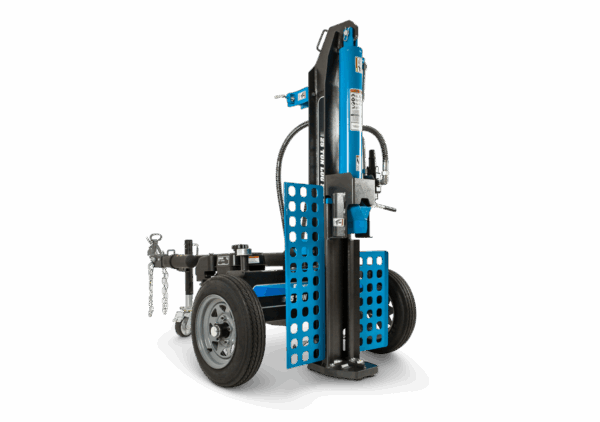

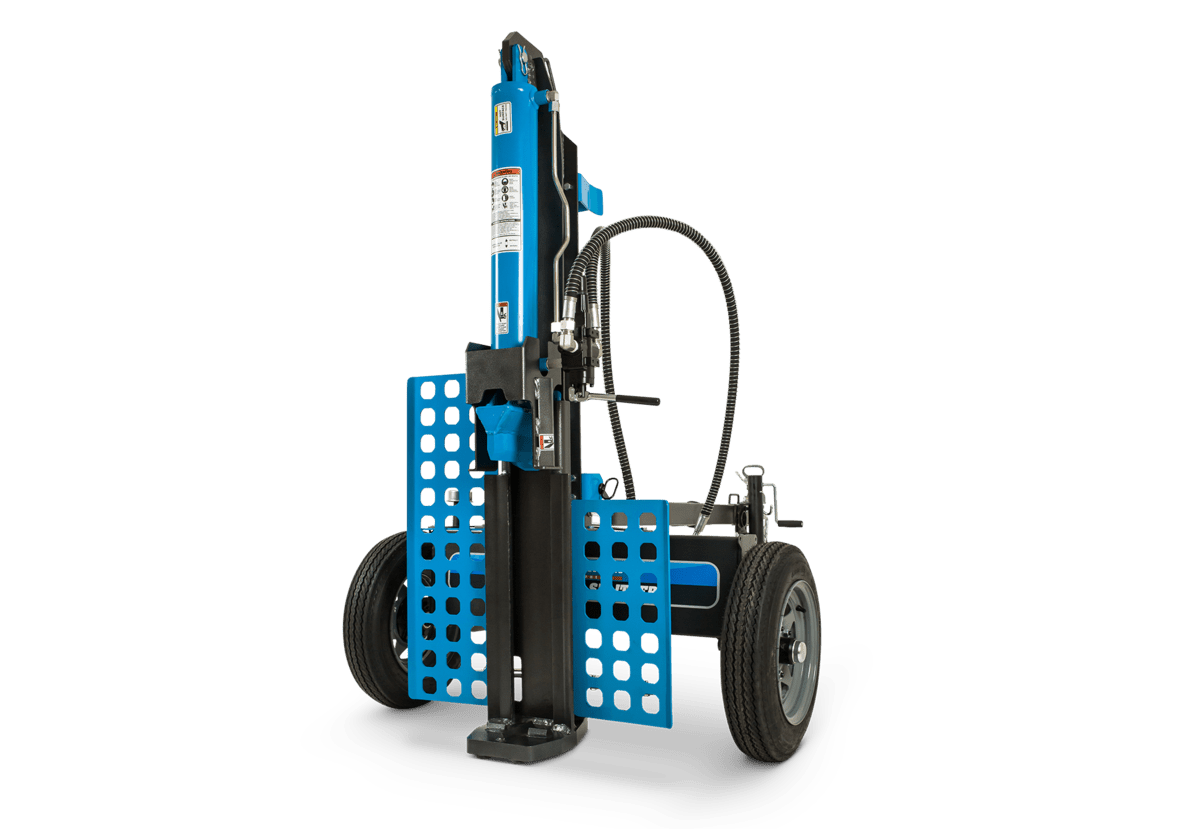

- Horizontal or vertical operation.
- 25 Tons of splitting force.
- Manually activated auto return valve.
- Two stage pump 13 GPM (49.21 litres per minute).
- Valve – Ergonomically positioned for operator comfort.
- Wedge: 8.5 ” (215.9 mm) High angled heat treated steel.
- Wheels / Tyres*: 4.80″ x 12″ D.O.T certified.
- Beam: 8.5″ (215.9 mm) Foot plate.
SPECIFICATIONS
All specifications are subject to change without notice.
-
Domestic Warranty: 3 Years Domestic (Limited) Warranty
-
Commercial Warranty: 3 Month Commercial Warranty
-
Hire/Rental Warranty: 3 Month Hire/Rental Warranty
-
Engine (cc): 196 cc
-
Engine: KOHLER SH265, 6.5 hp (196 cc) single cylinder, horizontal shaft OHV engine
-
HP: 6.5 hp
-
Hydraulic Ram Cylinder: (mm): Outside: 114.3 mm dia x 609.6 mm stroke / Inside: 101.6 mm I.D x 622.3 Stroke
-
Hydraulic Tank Capacity: (L): 25.5 litres
-
Pump: (L): Two stage 49.21 litres per minute
-
Shipping Dimensions: (mm): 635 mm (25″)
-
Shipping Weight: (kg): 231.33 kgs (with fluids)
-

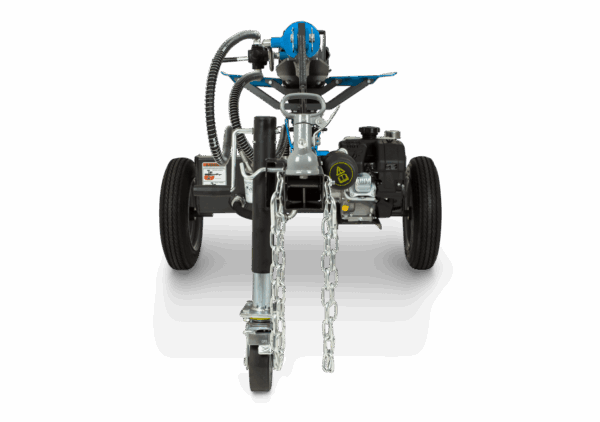

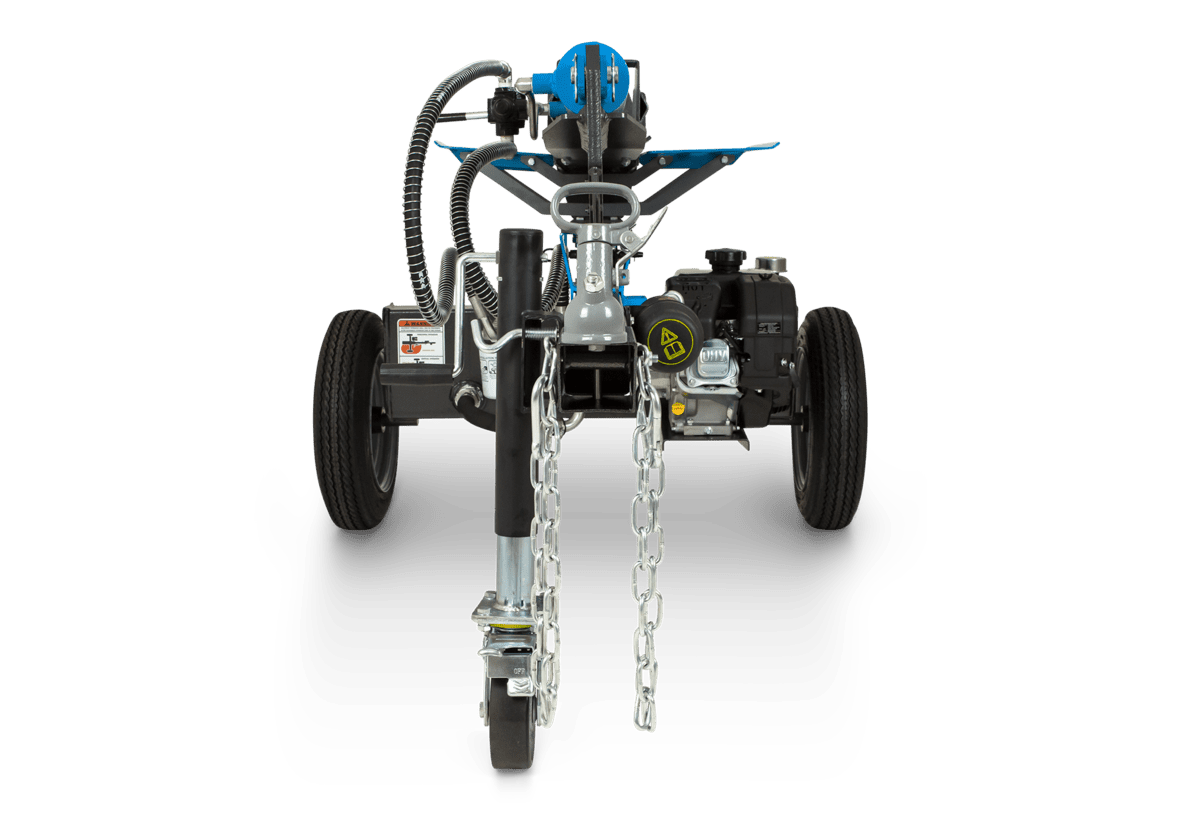

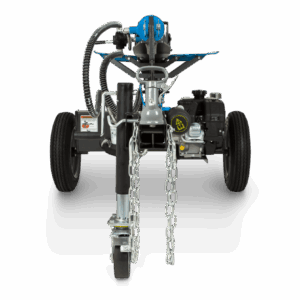

Tow Hitch: (mm): 50 mm ball hitch with safety chains – Aust style trailer bail hitch
-
Wedge: (mm): 215.9 mm High angled heat treated steel
-
Capacity: 25 Tons of splitting force
-
Valve: Manually activated auto return valve with adjustable detent
-
Cycle Time: 10.9 seconds (down and back)
-
Wheels / Tyres: *D.O.T approved 12″ x 4.80″ multi lug trailer wheel
-
Beam (mm): 215.9 mm
-
Ram Size: 1.75″ (44.45 mm) Dia.
