Our Compact ZTR 35 will easily fit through most backyard entrances, as it measures only 940mm wide (35″ model).

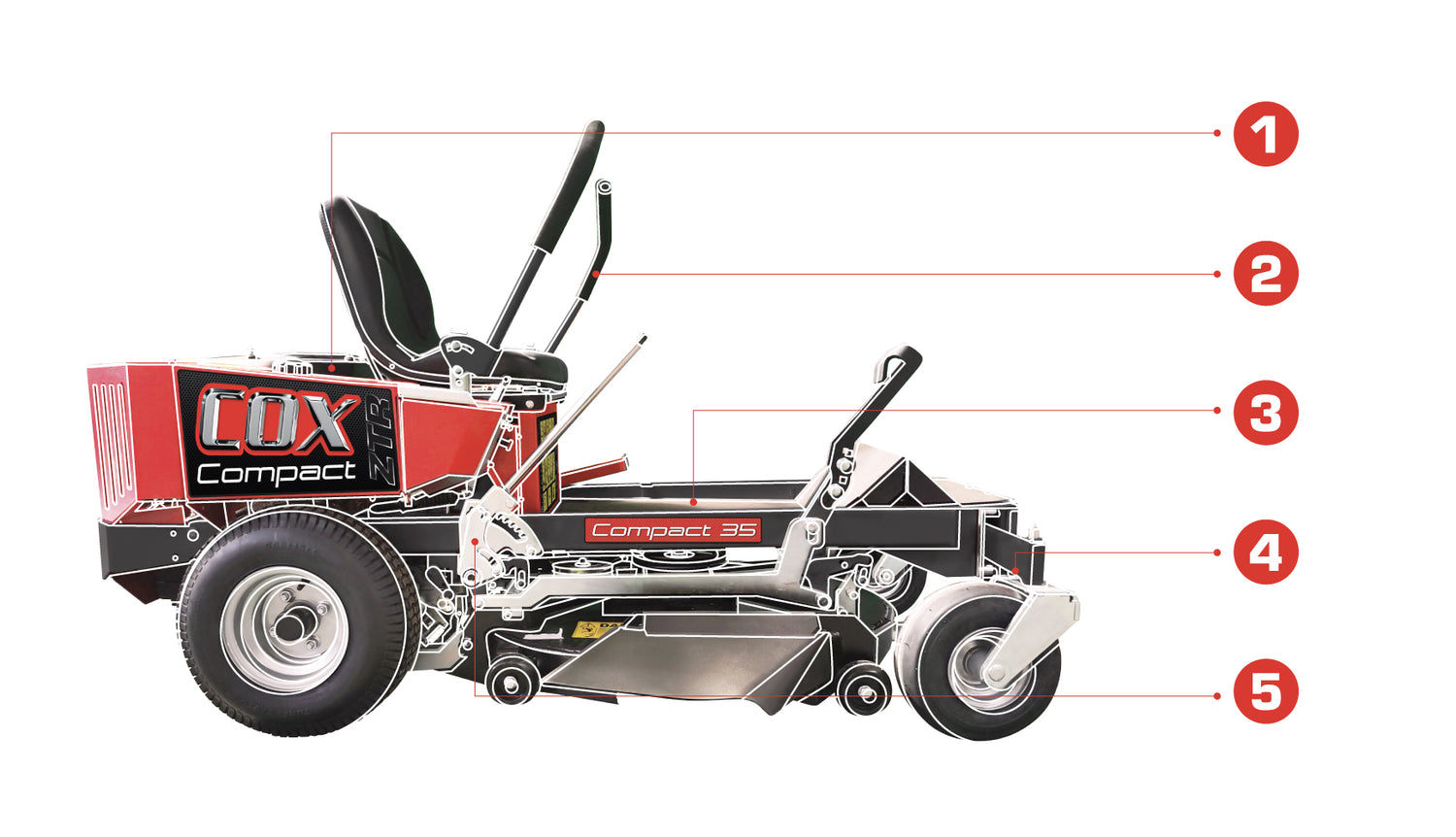

5 Features of the Compact ZTR 35
- Dual Fuel Tanks For Up To 9 Hours Of Continuous Mowing.
- Hand Controlled Twin Levers Allow The Operator To Change Direction For Greater Operator Control.
- Full-Length Robotically Welded Frame Design Has High-Strength Steel Rails For Added Strength And Long Life.
- Unique Pivoting Front Axle Gives Increased Traction And Stability.
- Fabricated Height Adjustment With Foot Assist For Quick Lift Over Obstacles And Low Effort Height Adjustment.
ENGINE:
CZ24C35: COX Compact 24hp 35″ V Twin, ZT-2200
CZ24C42: COX Cruiser 24hp 42″ V Twin, ZT-3100
CZ26C48: COX Cruiser 26hp 48″ V Twin EFI, ZT-3100
CZ26C52: COX Cruiser 26hp 52″ V Twin EFI, ZT-3100
Cylinders: V-Twin
Displacement: 680cc
Oil Capacity: 2.0LT
Engine Warranty: 3 Years COX Conditional
DRIVE
Drive Model: Tuff Torq™ K46
Drive Warranty: 2 Years Conditional
Ground Speed: FWD 0-10KPH/REV 0-6KPH
CUTTING SYSTEM
Cutter Deck Width: 35″ (890mm)
Blade Engagement: Ogura Electromagnetic Clutch
Cutter Belt Type: Premium B-Section
Height Range: 20mm-100mm
Blade Type: Heavy Duty Swing Back
CHASSIS
Tyres: 11x400x5 (F) – 18×6.50-8 (R)
Seat: Premium High Back Seat
Seat Adjustment: Fingertip Adjustment
Hour Meter: Standard
Construction: Fabricated Steel
DIMENSIONS
Length: 1900mm
Width: 940mm
Weight: 2kg
Warranty: 5 Years Conditional
